Description

This kit adds Pixelcade Pulse arcade lighting effects to Pixelcade V1 LED Marquees, AtGames BitPixel Marquees, and Pixelcade LCD Marquees. If you have an AtGames BitPixel, be sure and select the BitPixel mount option. Select the 5″ LED Speaker Grille with 35 LEDs or the 6″ LED Speaker Grille with 45 LEDs. Select the number of LEDs in your installation so we can ship the correct Pixelcade Pulse to WS2812B adapter cable.

Includes:

  • 1 Pixelcade V2 Board and Pixelcade LED Matrix Power Cable

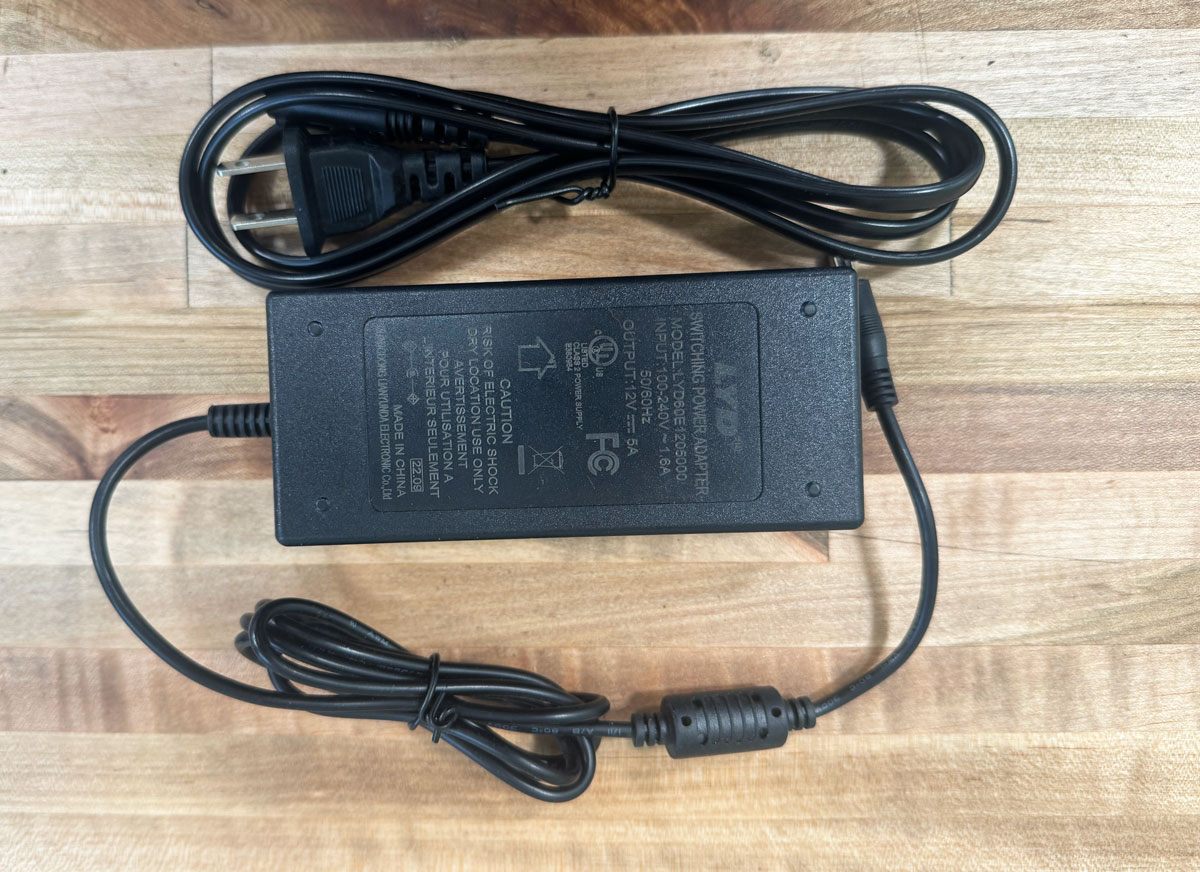

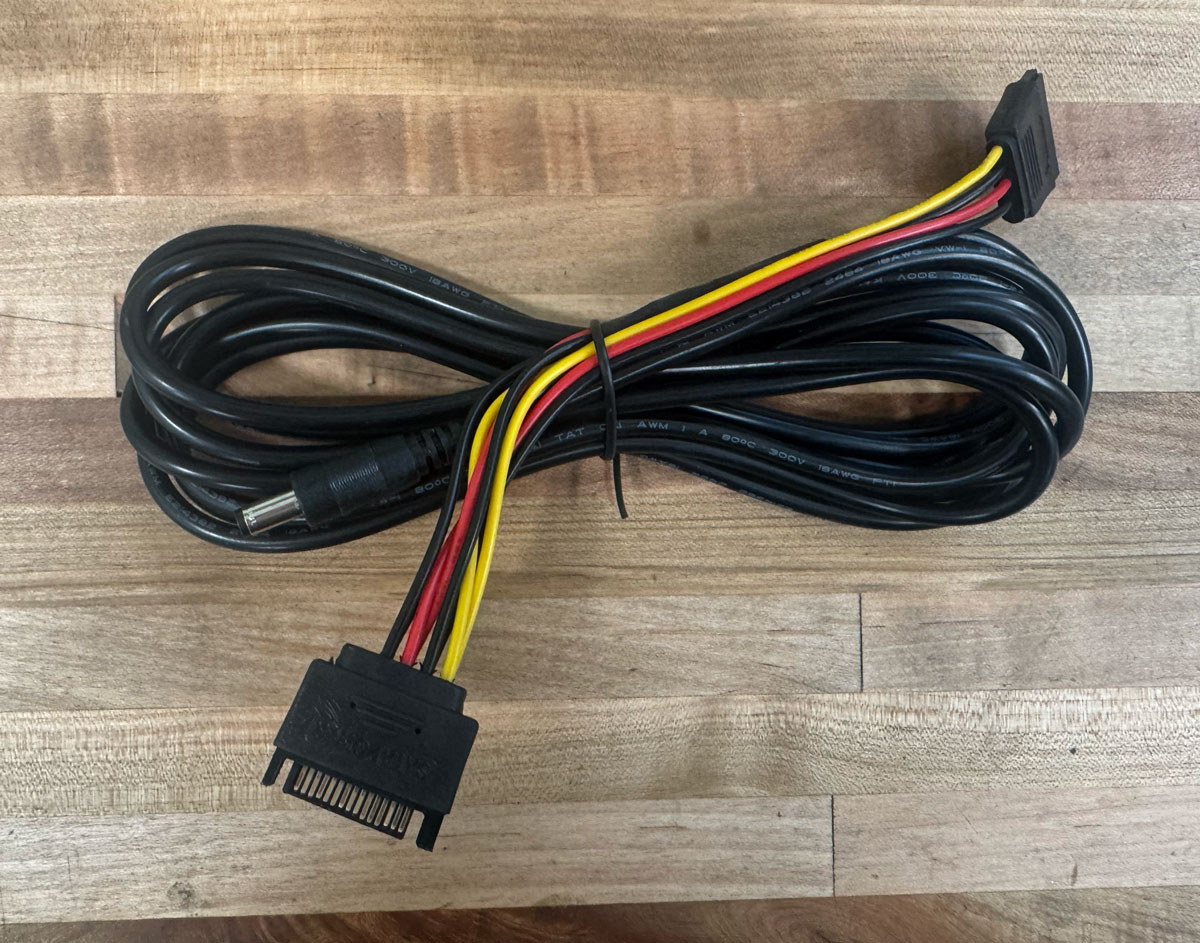

  • 12V, 5A Power Brick or Pixelcade SATA Power Cable

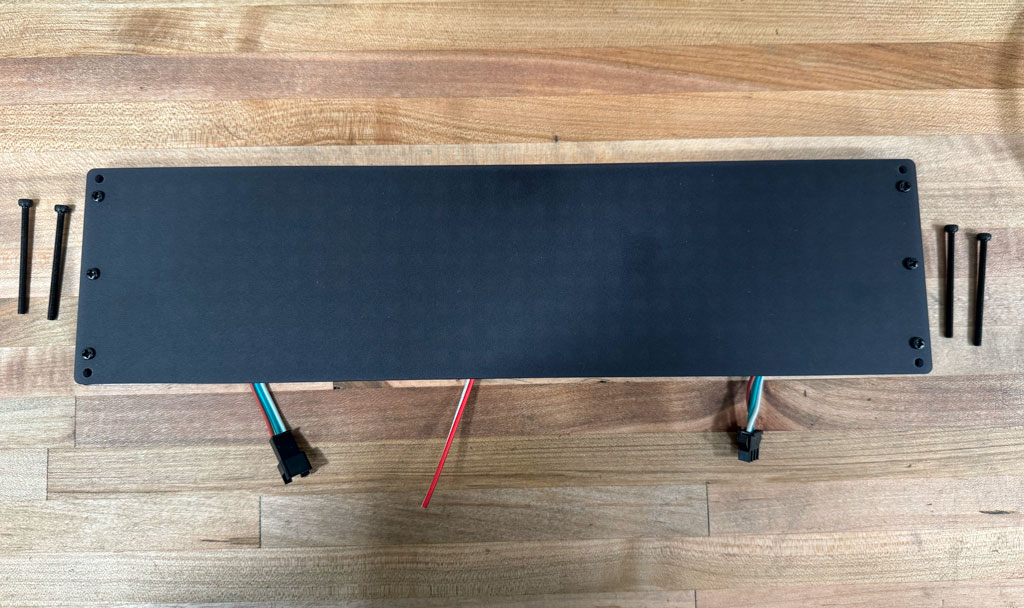

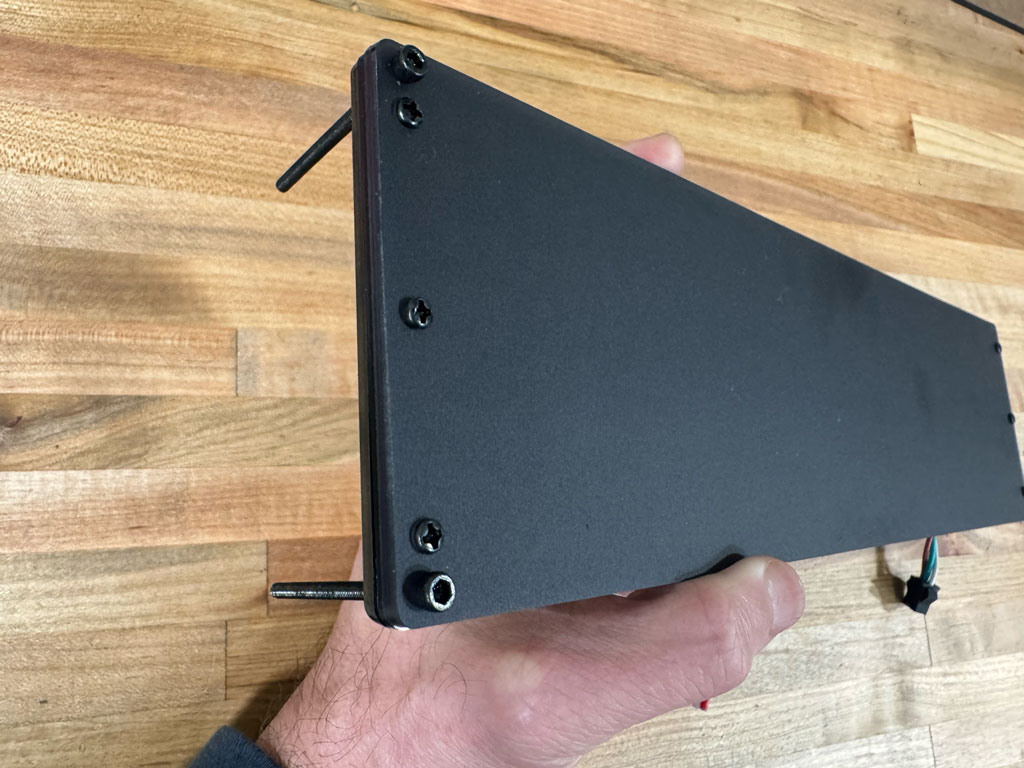

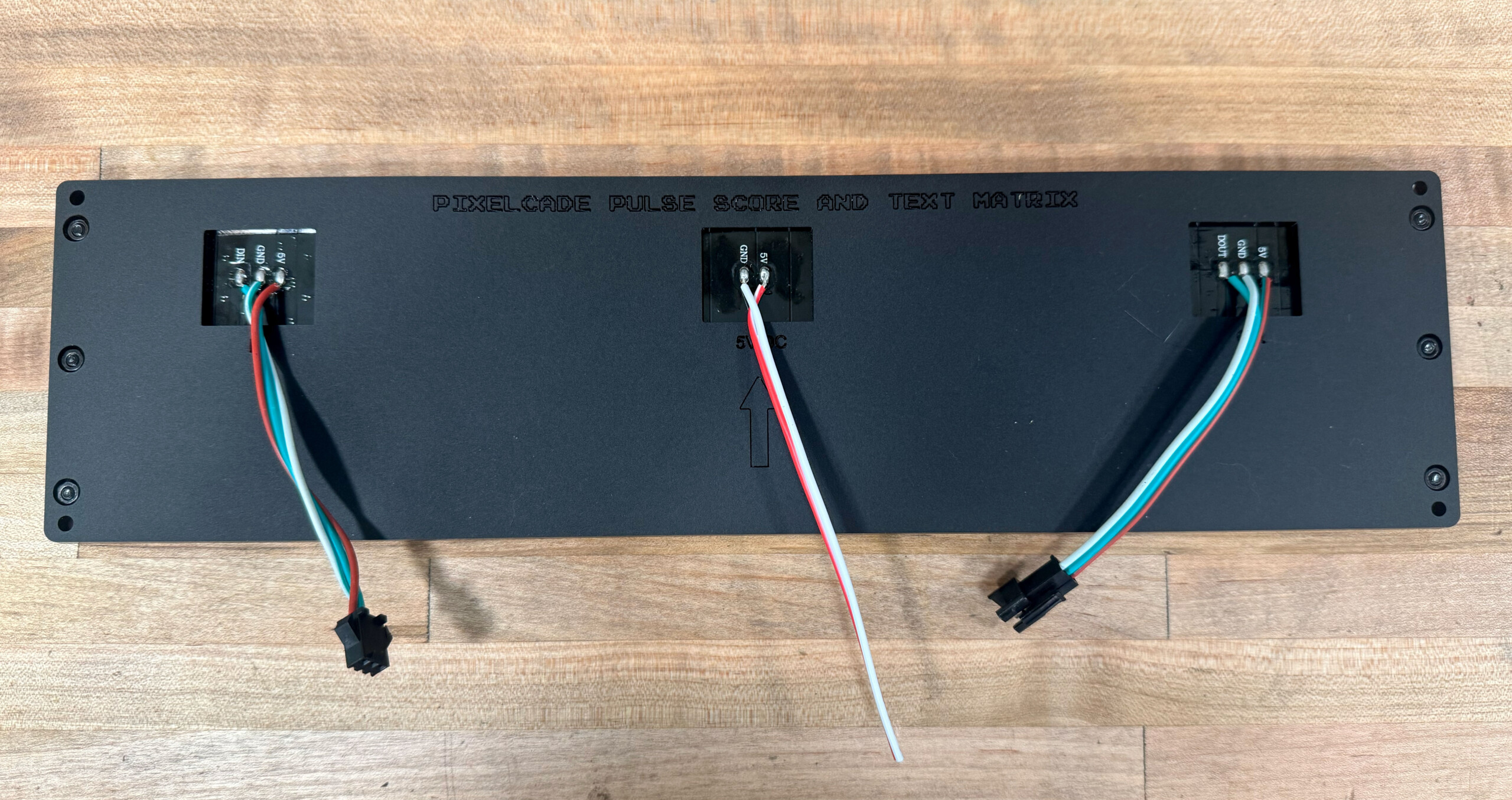

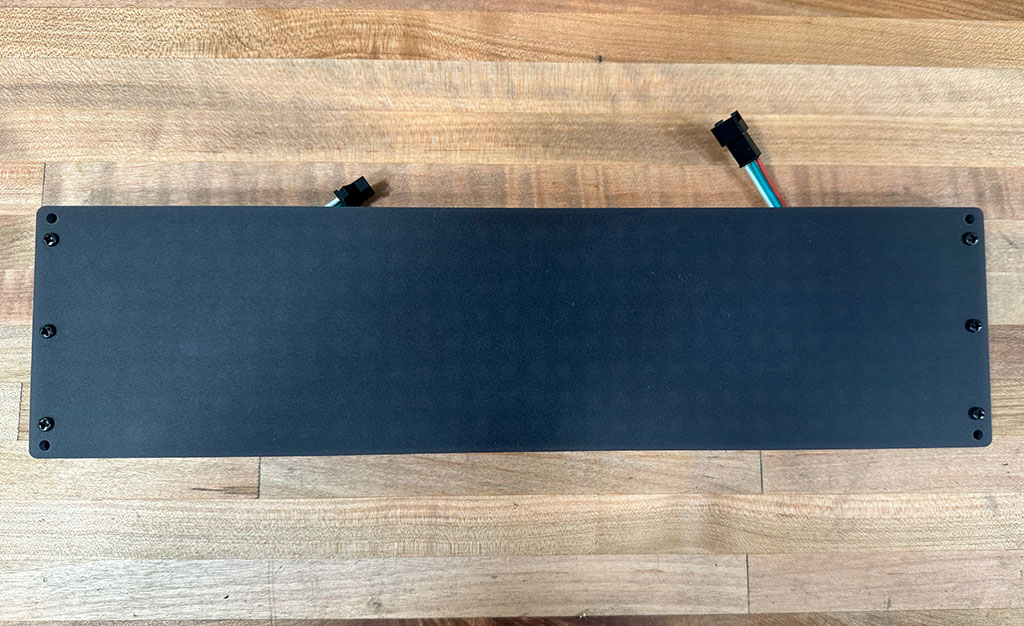

  • 1 Pixelcade Pulse 8×32 Matrix in Black Stealth Matte Mount
  • 2 Pixelcade Pulse LED Speaker Grilles in Black Stealth Matte Mount (choose between 5″ or 6″ size)
  • 1 Pixelcade Pulse to WS2812B Adapter Cable

Optional:

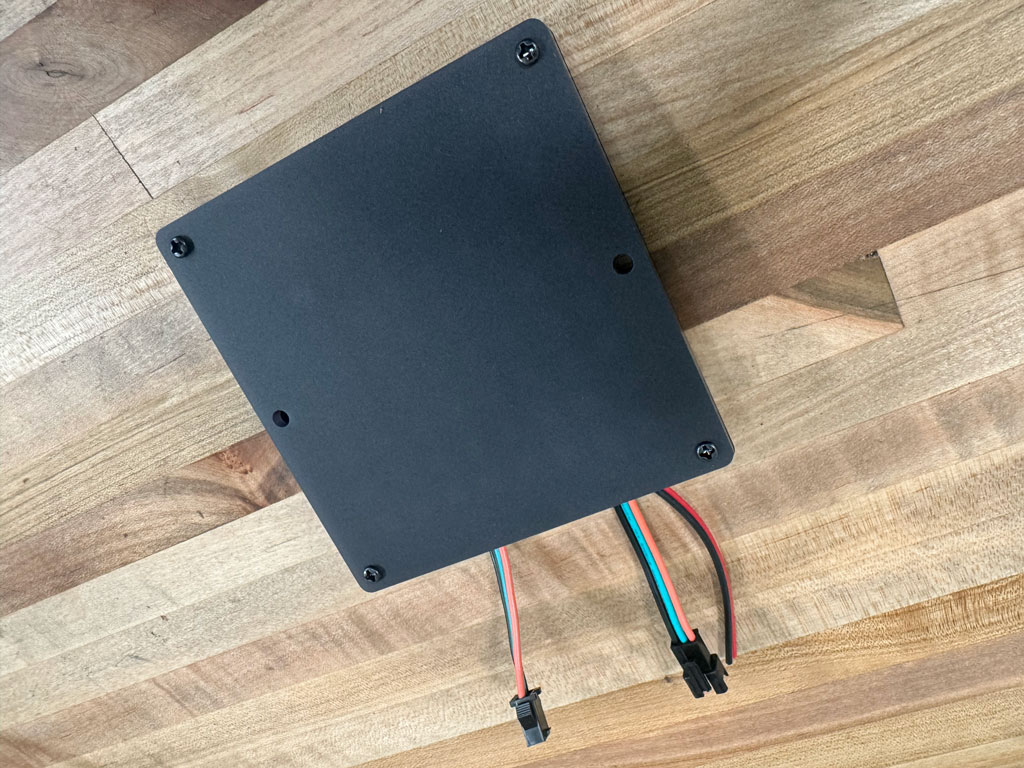

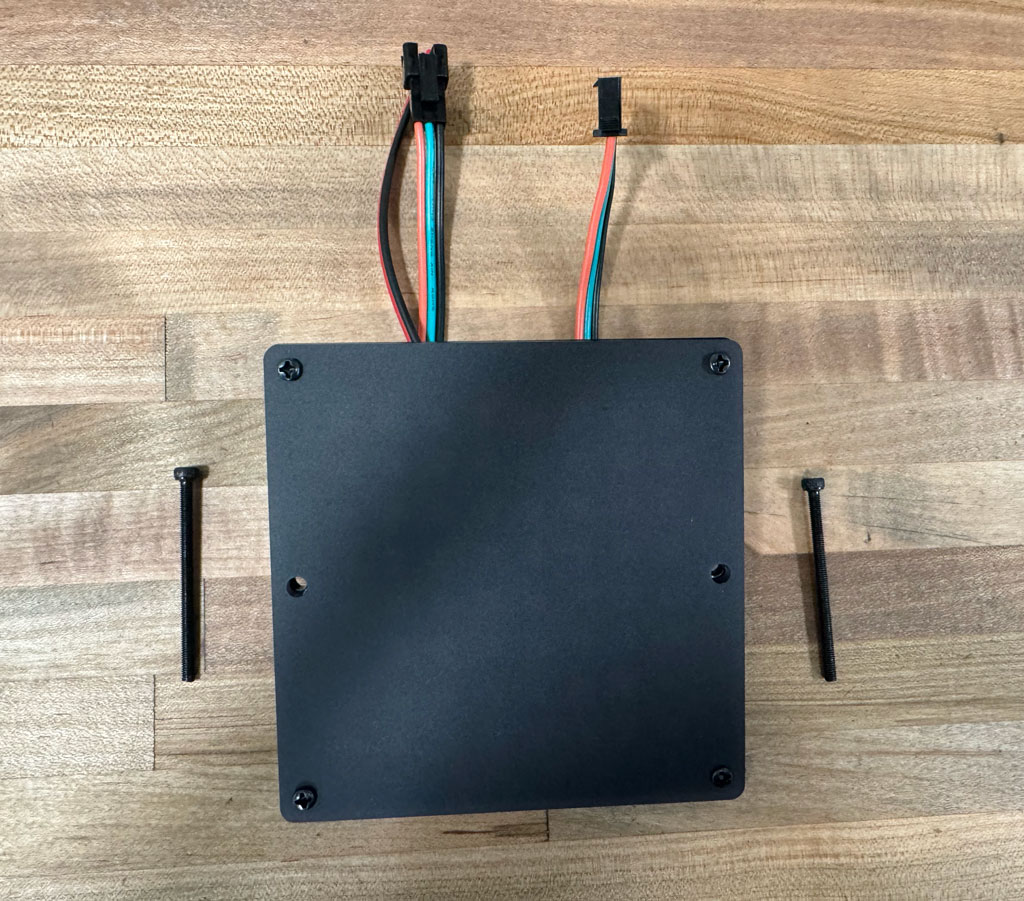

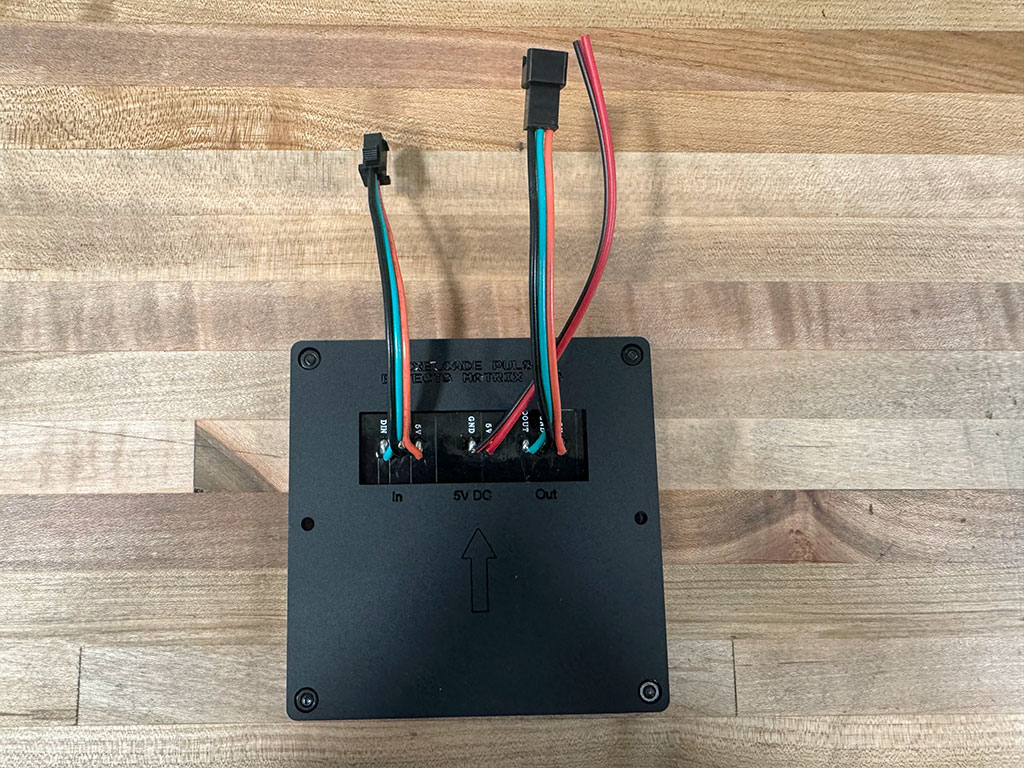

  • 2 Pixelcade Pulse 8×8 Matrices in Black Stealth Matte Mount
  • BitPixel Mount (allows you to mount the Pixelcade V2 board to your existing AtGames BitPixel)

Not Included:

Dimensions:

  • Pixelcade Pulse 8×32 Matrix Dimensions: 13.36″ x 3.46″ x .30″
  • Pixelcade Pulse 45 LED Speaker Grille 6″ x 6″ x .25″ or Pixelcade Pulse 35 LED Speaker Grille 5″ x 5″ x .25″

VERY IMPORTANT: Discard your Pixelcade V1 LED matrix power cable and only use the V2 LED matrix power cable with kit as using the V1 power cable will fry your LED panels.

Build and Setup Tutorials at http://pixelcade.org/pulse
