Your Pixelcade™ will ship within 2-3 days of ordering via UPS ground from California, USA.

Add a classic 8-bit look to your arcade machine with the Pixelcade™ LED Marquee. 5 LED Marquee sizes available from Full Size 4 Player Cabinets, 2 Player Uprights, and Bartops.

IMPORTANT: It’s strongly recommended to purchase Pixelcdade LED panels in addition to the Pixelcade V2 controller board as not all HUB75 panels are compatible. HUB75 panels vary by chipset and pixel ordering across different manufacturers. Some will work but we won’t be able to support generic HUB75 panels that are not compatible.

If you own one of the cabinets below, it’s better to purchase the kit + mount that has been designed specifically for that cabinet:

Check here for other cabinets with available mounts. If your cabinet matches one of those, that can be added for an additional $60 USD.

Here also are reference mount designs you can modify and design your own custom mount. Ponoko.com is a good laser cutting service and also who we use. You’ll upload your design in .AI or .SVG format to Ponoko.com and they will ship to you.

If you need a custom mount designed for your cabinet, we can do that for an extra design fee and we’ll also need to get our marquee area inner and outer dimensions in this form.

By default, a 10 ft USB A-A cable is included but if you require a shorter 6 ft USB A-A cable, please add a note in your order.

Generic Mount Dimensions:

Size LED Panel Dimensions Generic Mount Dimensions Mount CAD File
P7.6 38.4″ x 9.6″ 40″ x 10″ Download
P6 30.2″ x 7.55″ 32″ x 7.55″ Download
P5 25.2″ x 6.3″ 26.2″ x 6.3 Download
P4 20″ x 5″ 21.65″ x 6″ Download
P3 15″ x 3.8″ 16.1″ x 3.8″ Download
P2.5 12.5″ x 3.1″ 13.4″ x 3.9″ Download

As the LEDs are very bright, it’s highly recommended to add a grey translucent acrylic diffuser in front of the LEDs. Here is an example of the diffuser material, see the transparent dark smoke 36% and note that the 36% indicates light transmission. All full mounts include mounting stands for the front diffuser. If you have a laser cutter for example, you can laser cut your own front diffuser based on the full mount CAD files.

More info at http://pixelcade.org

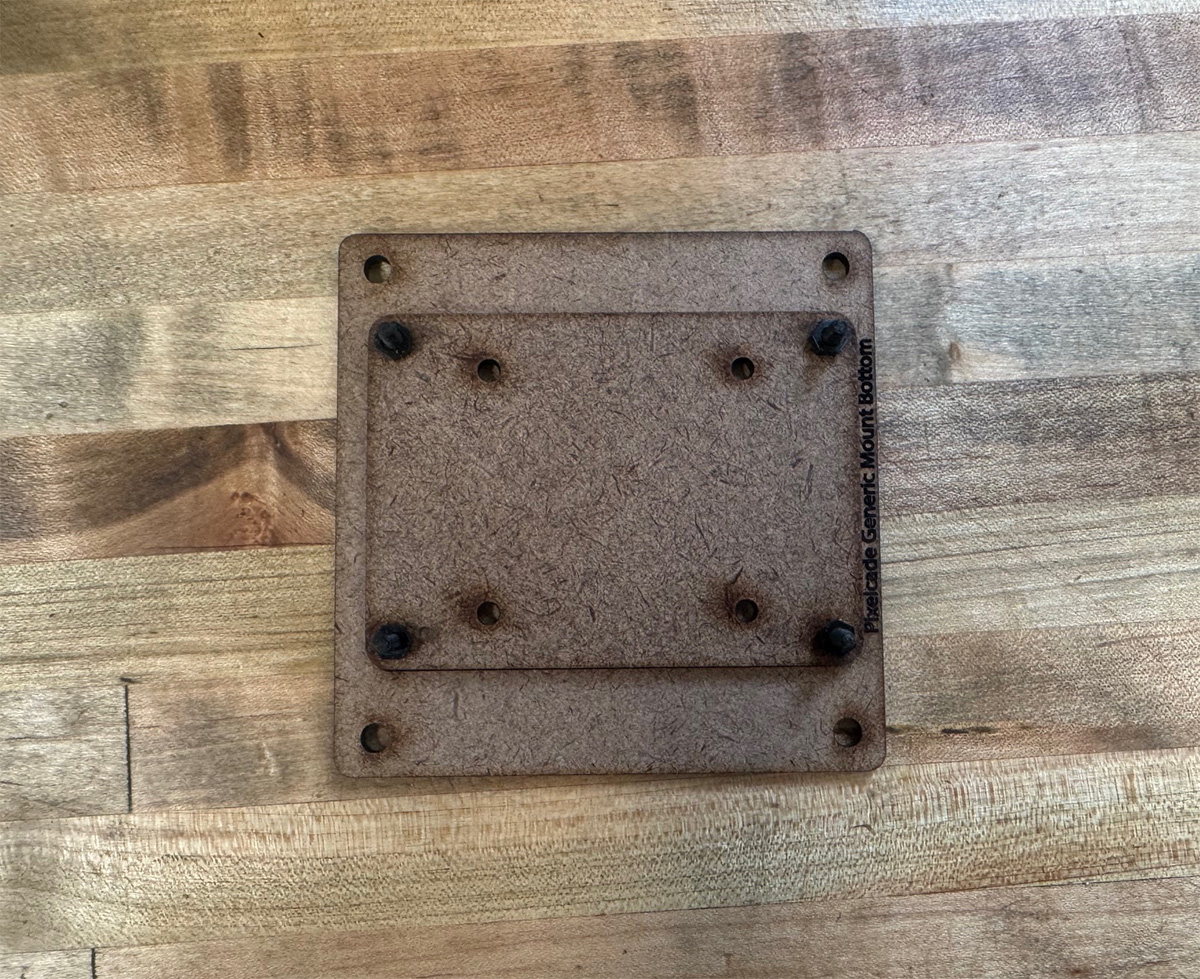

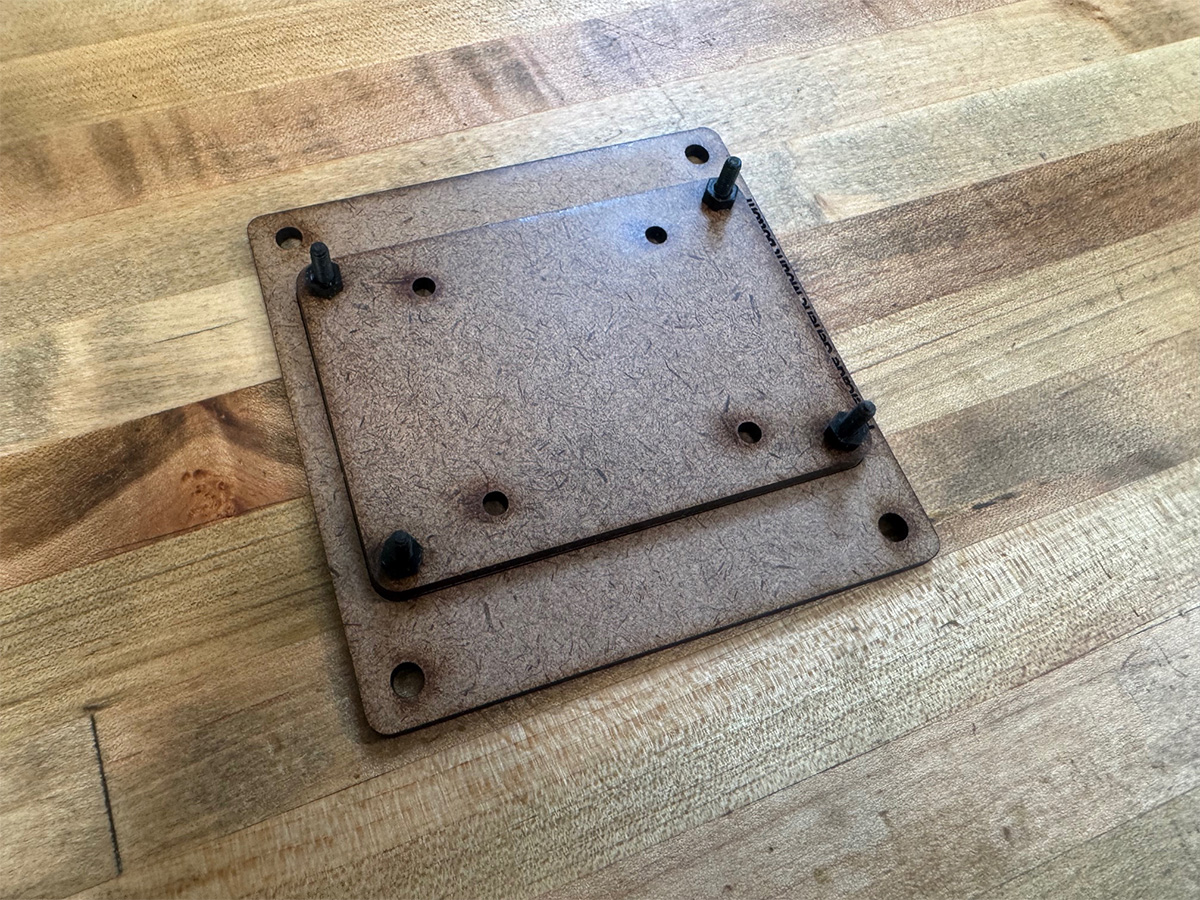

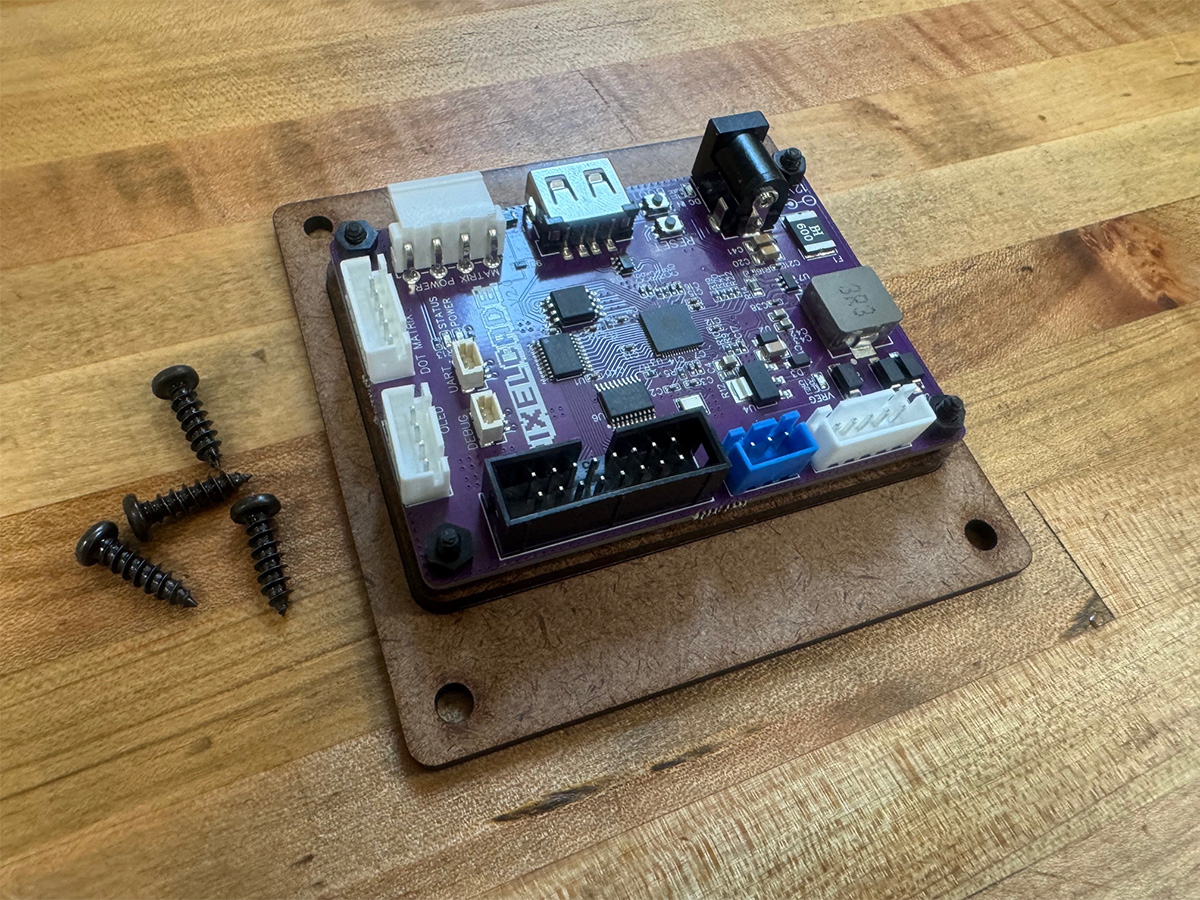

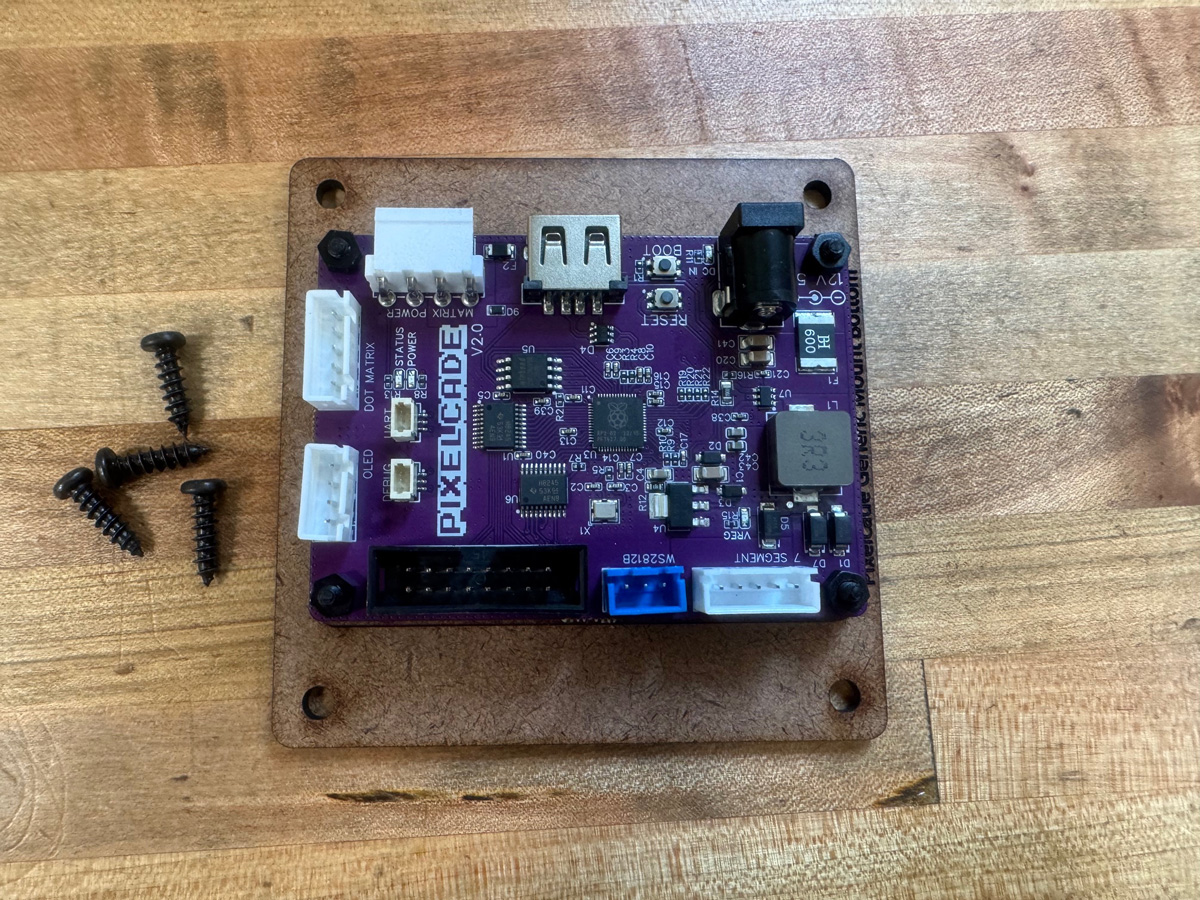

Optional Generic Mount



Damage Policy
-We’ll ship replacement parts for any components damaged during shipping

Return Policy
-Return shipping is not included and a 15% restocking fee will be applied to cover money transfer fees and packagingFor PC based arcades, it’s highly recommended to choose the Pixelcade SATA PC Power Cable option (12V based) which will allow you to power Pixelcade using your existing PC power supply AND Pixelcade will turn on and off automatically with your PC.
