Pixelcade LCD DIY Kit

Description

Includes

• Pixelcade LCD Software (Digital Download)

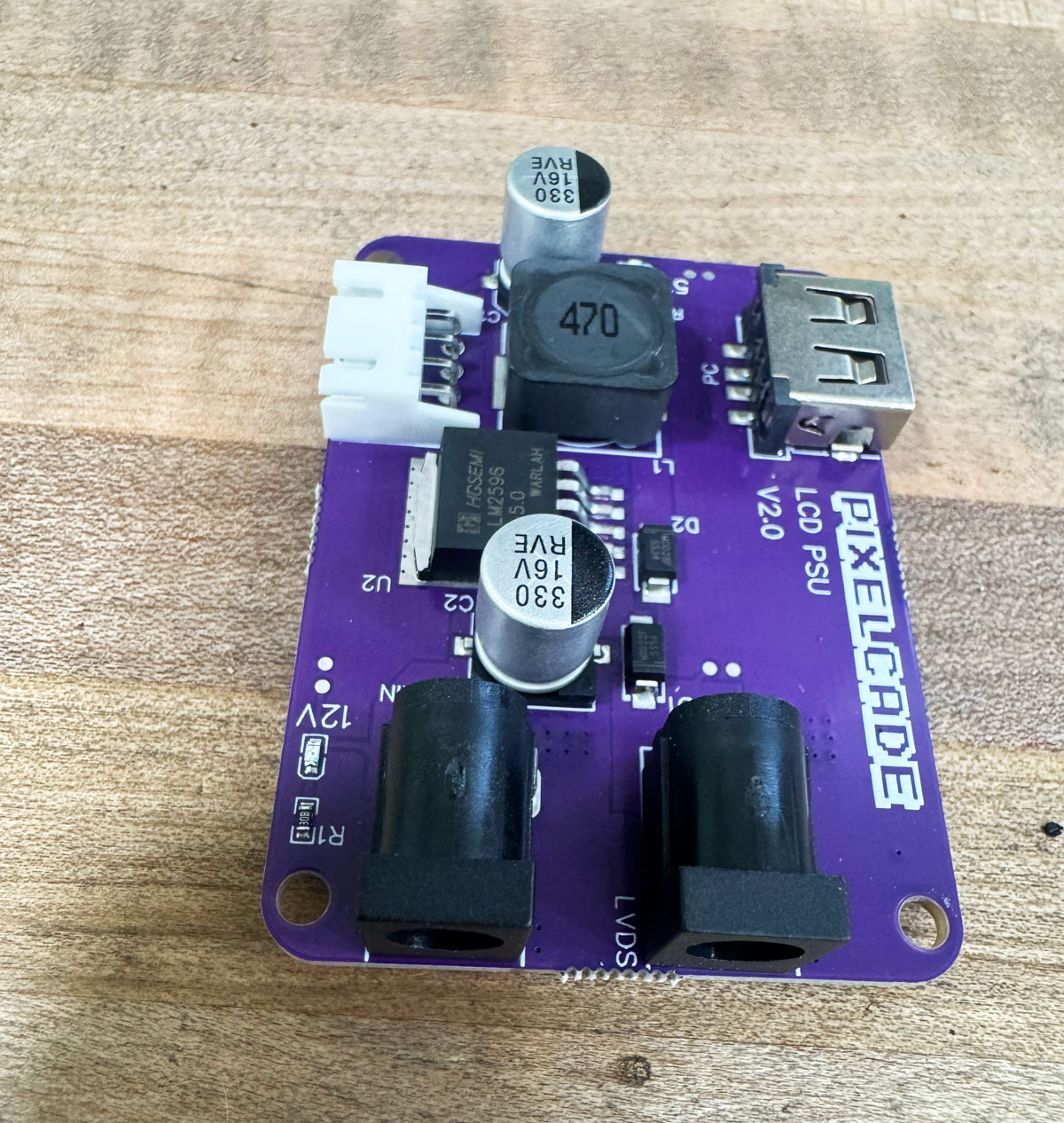

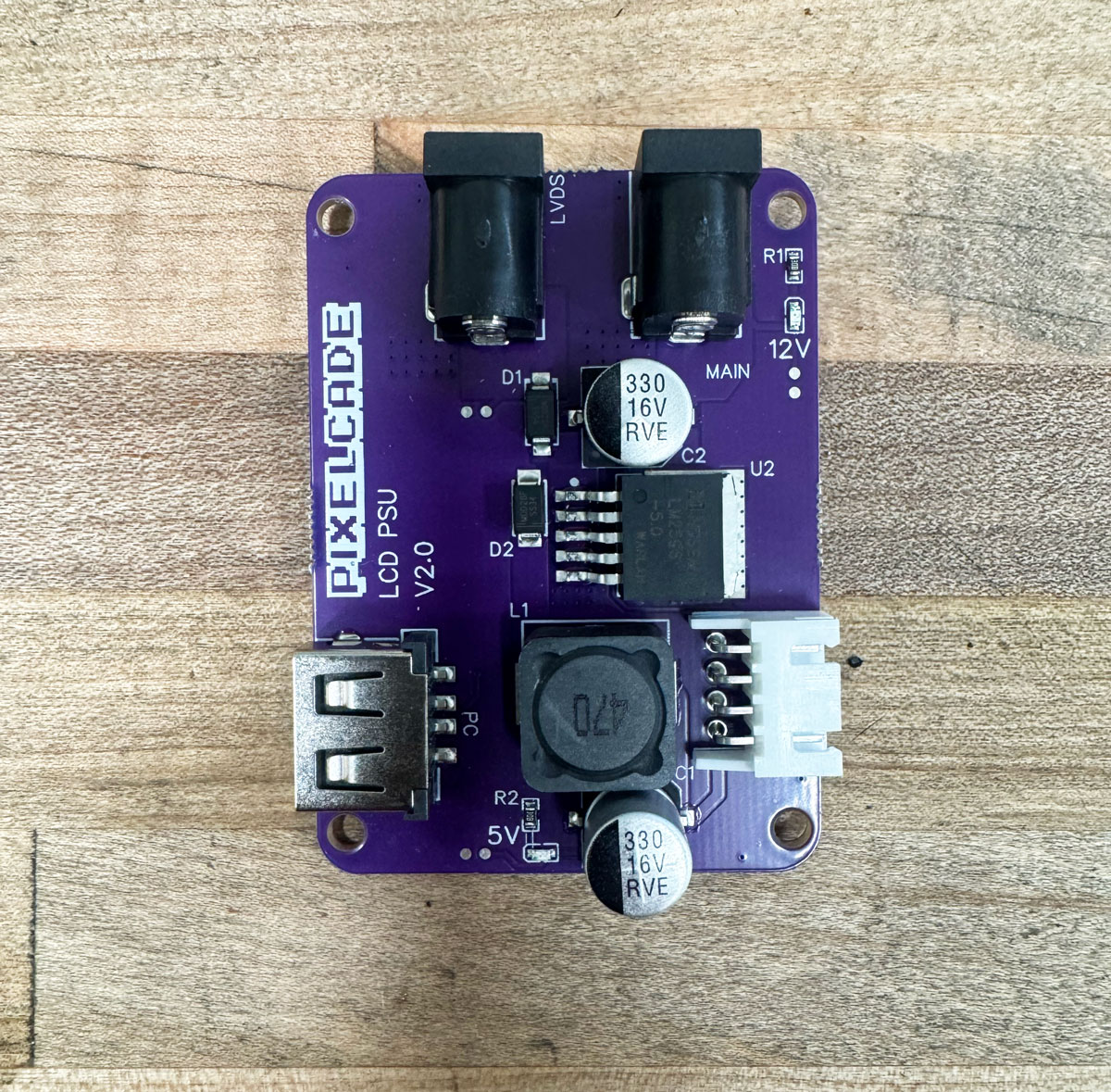

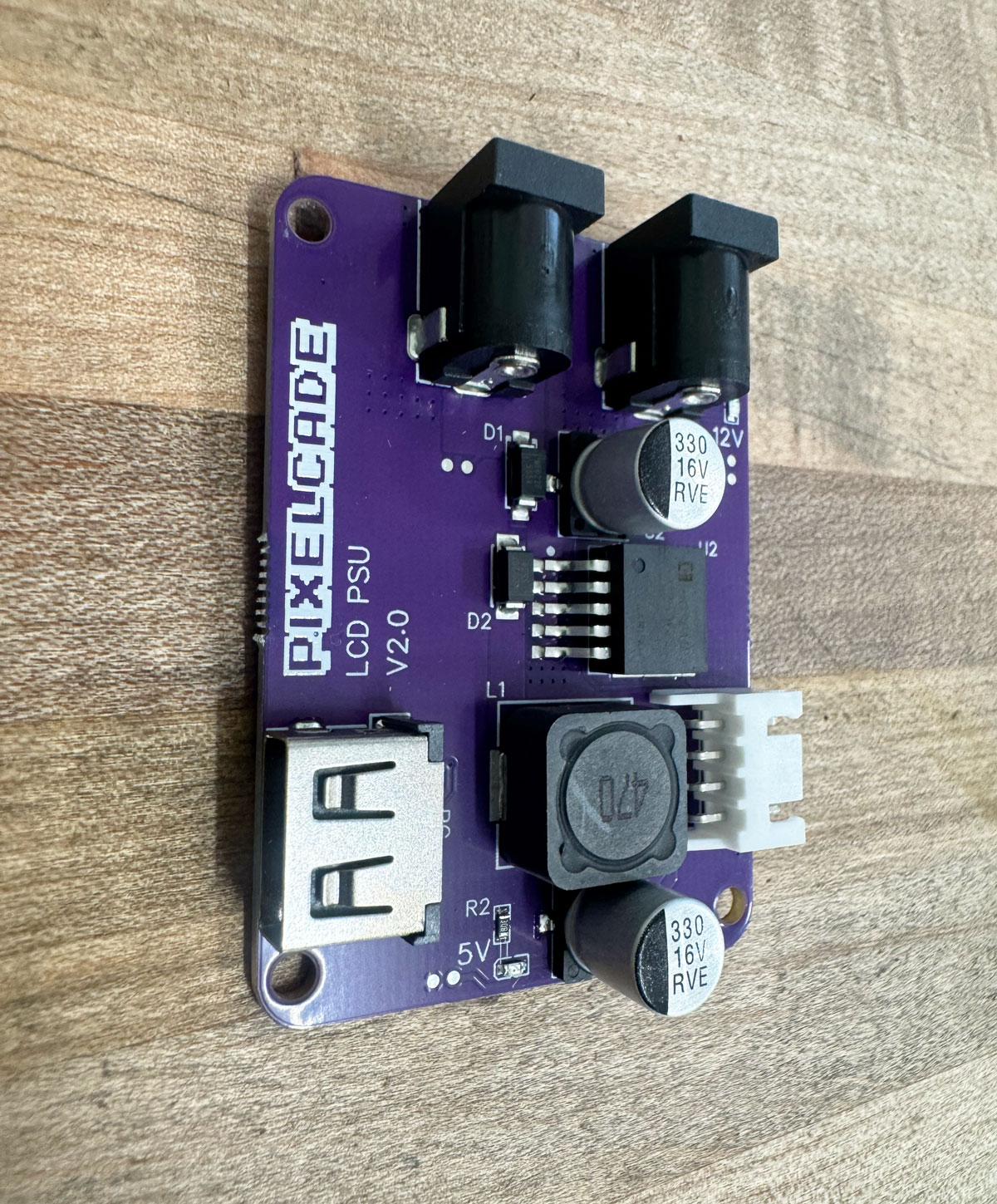

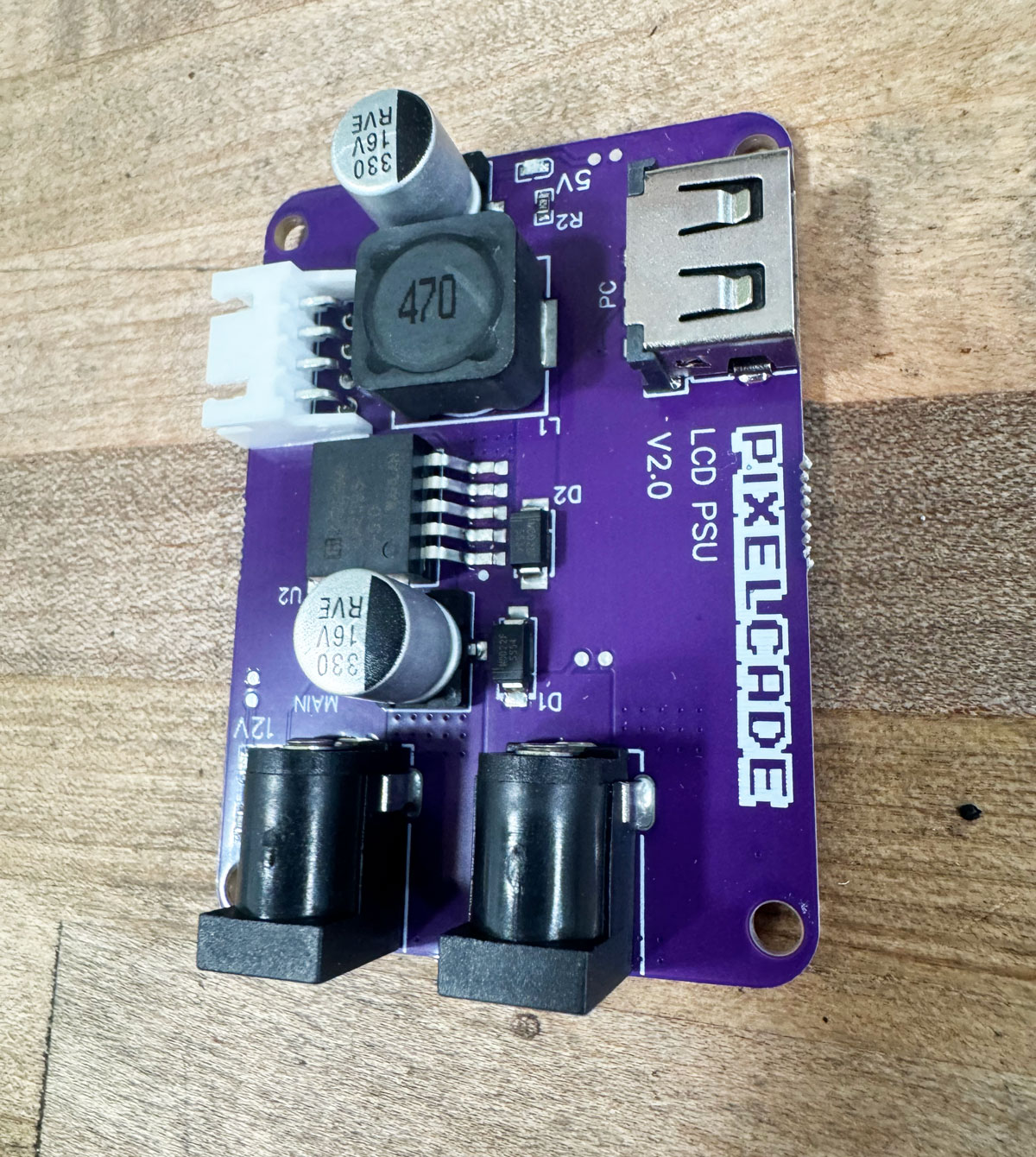

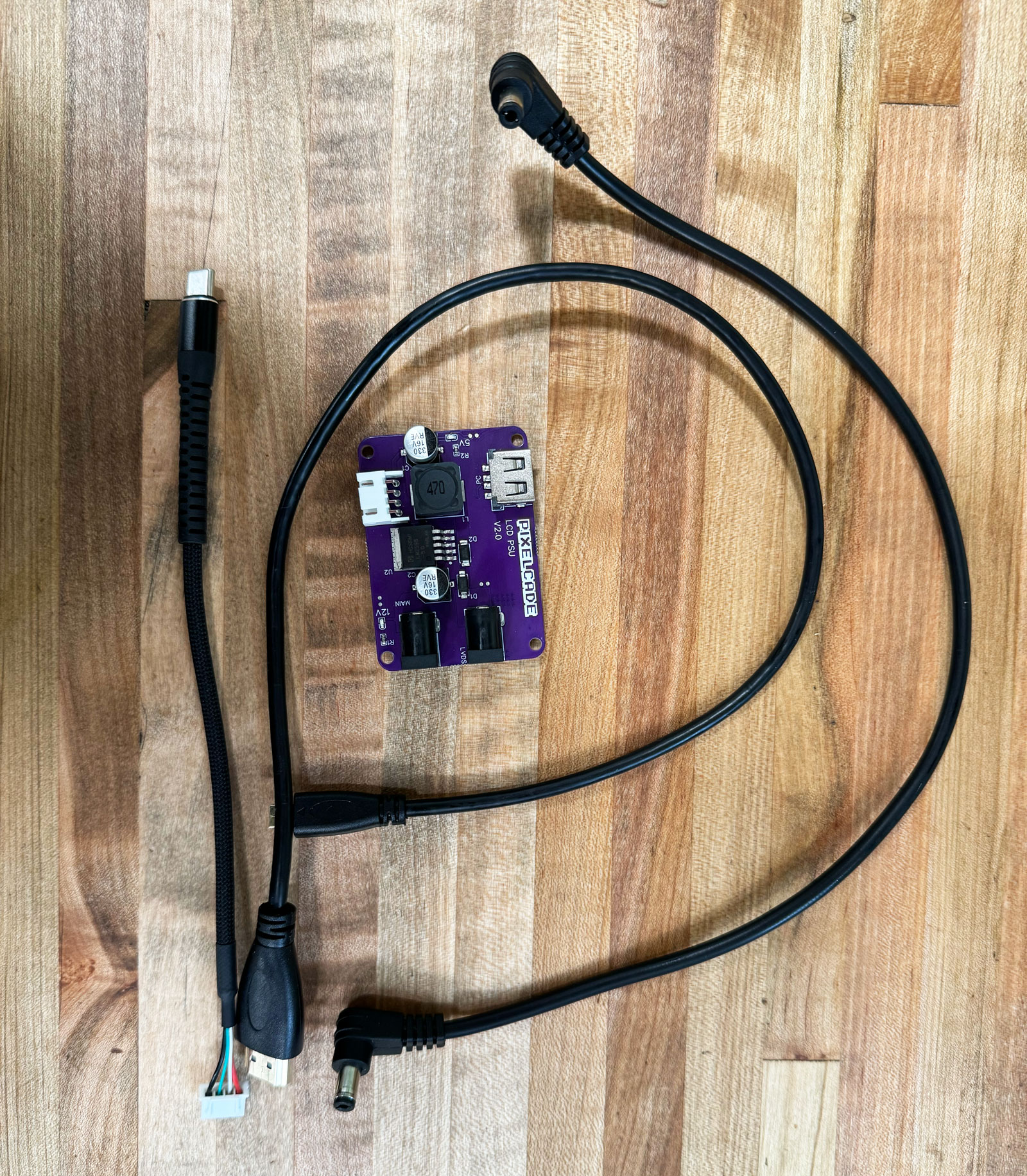

• Pixelcade LCD PSU

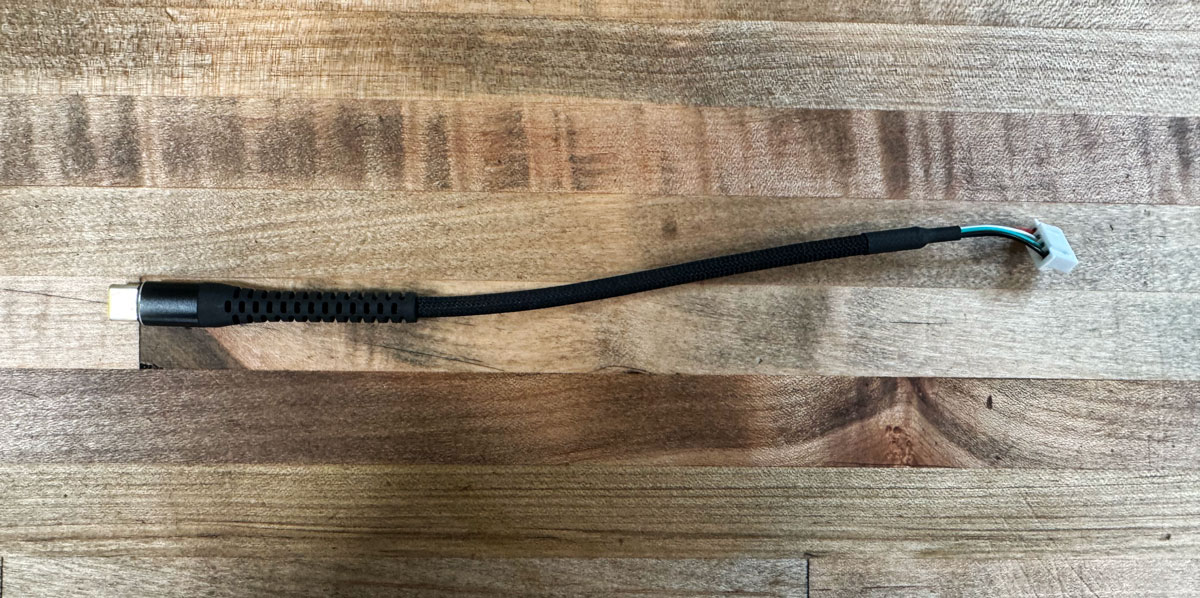

• Pixelcade LCD PSU USB-C Cable

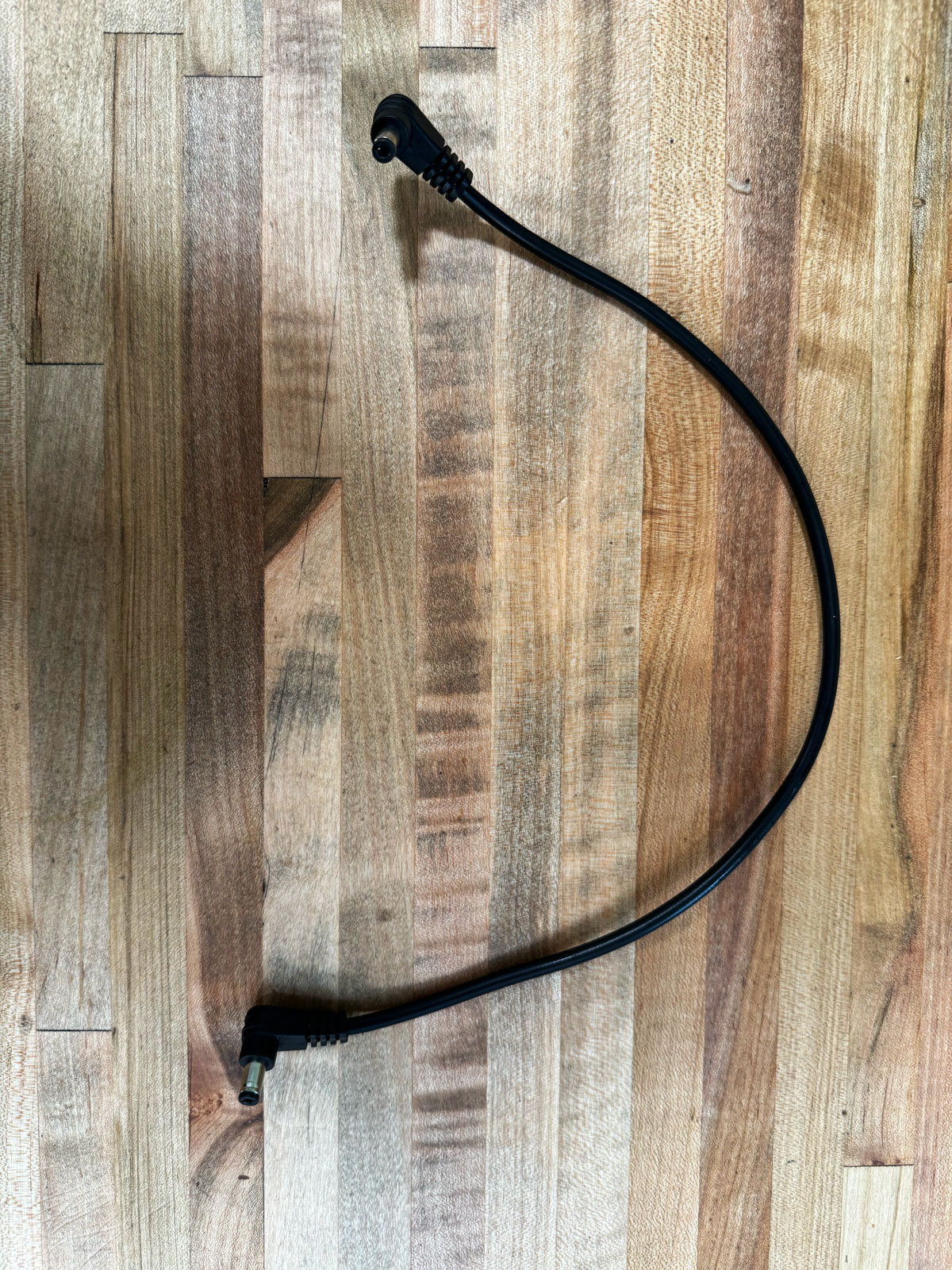

• DC jack to DC jack cable (right angle)

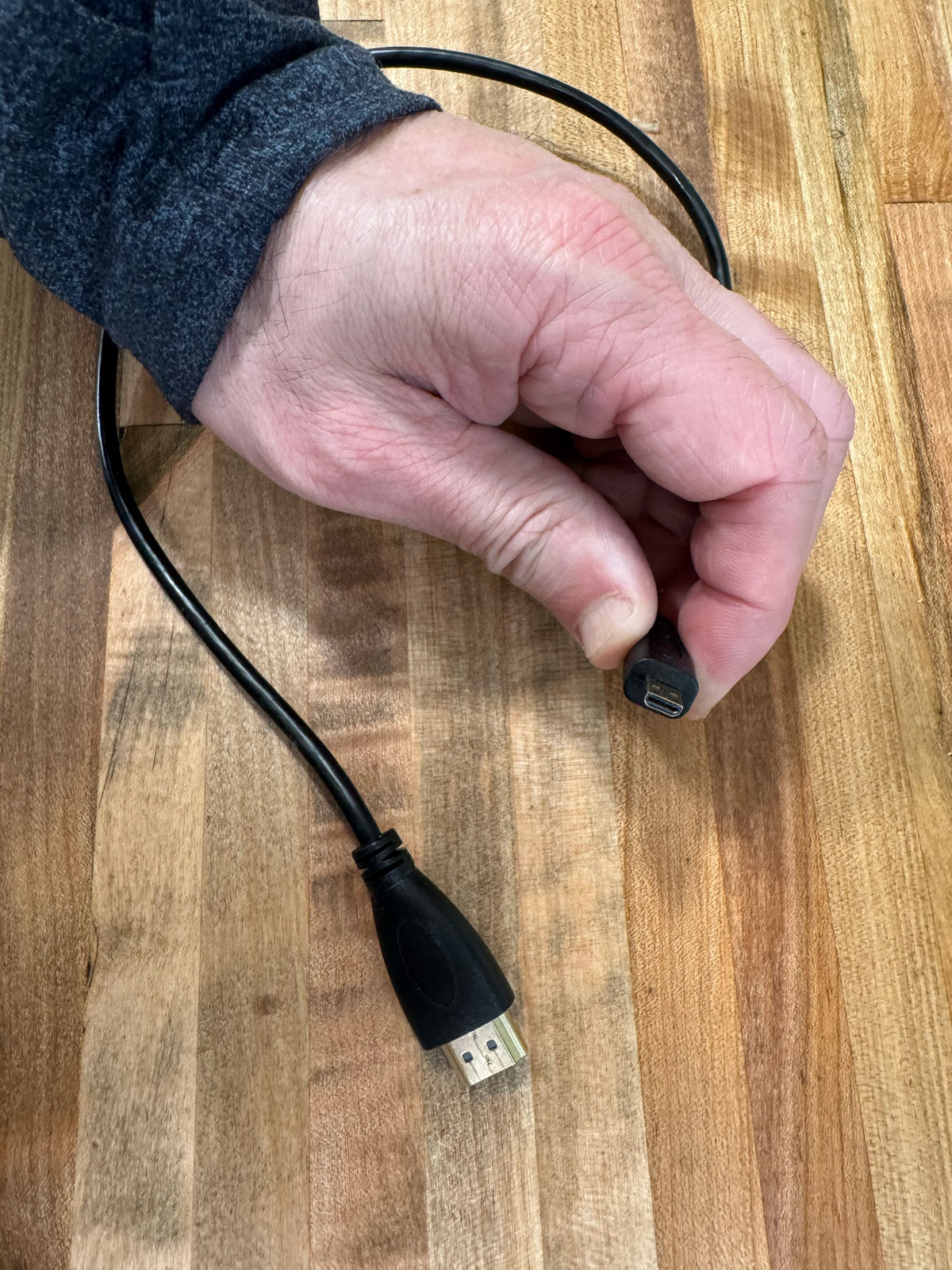

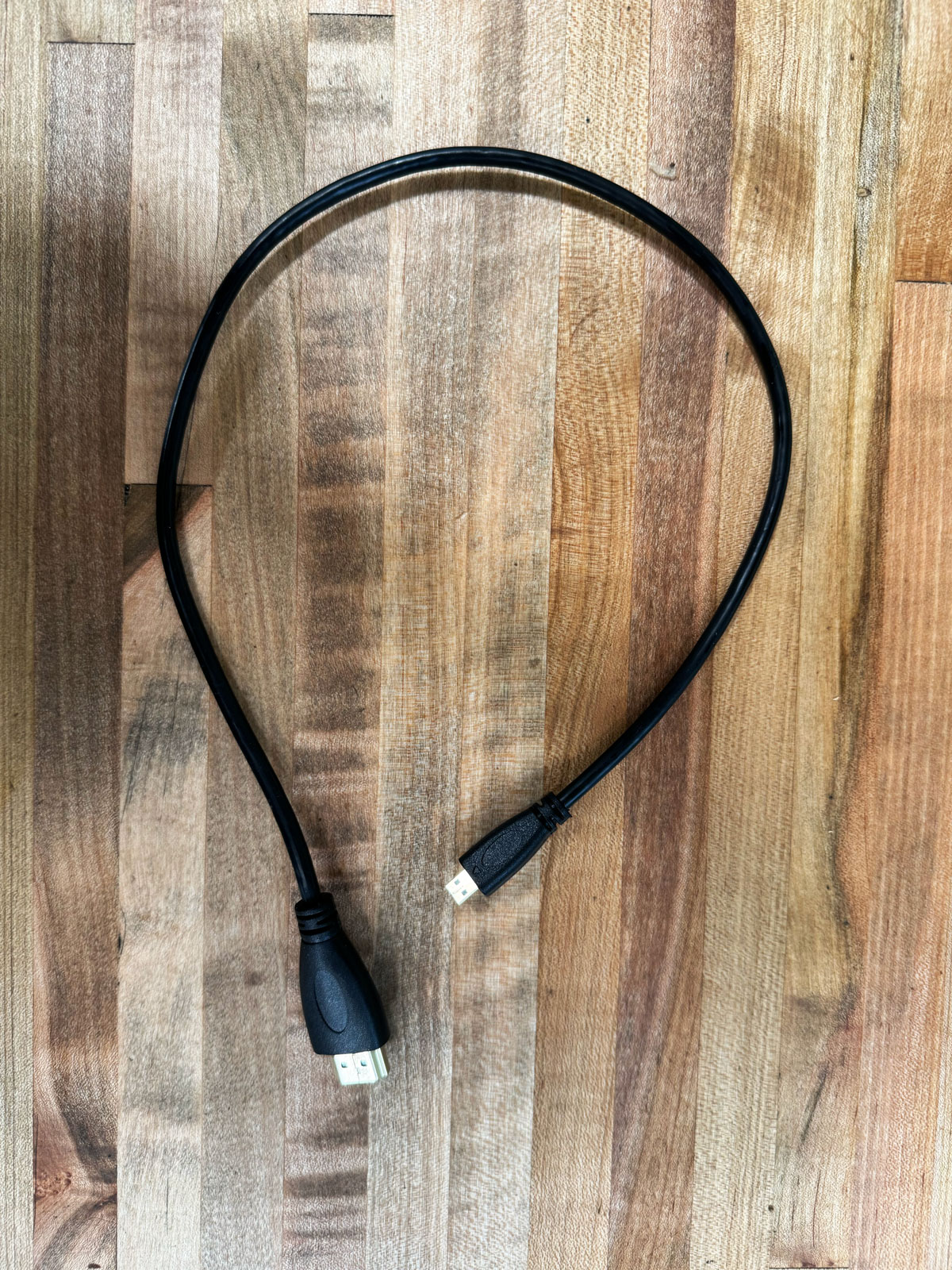

• Micro HDMI cable – 19 inches

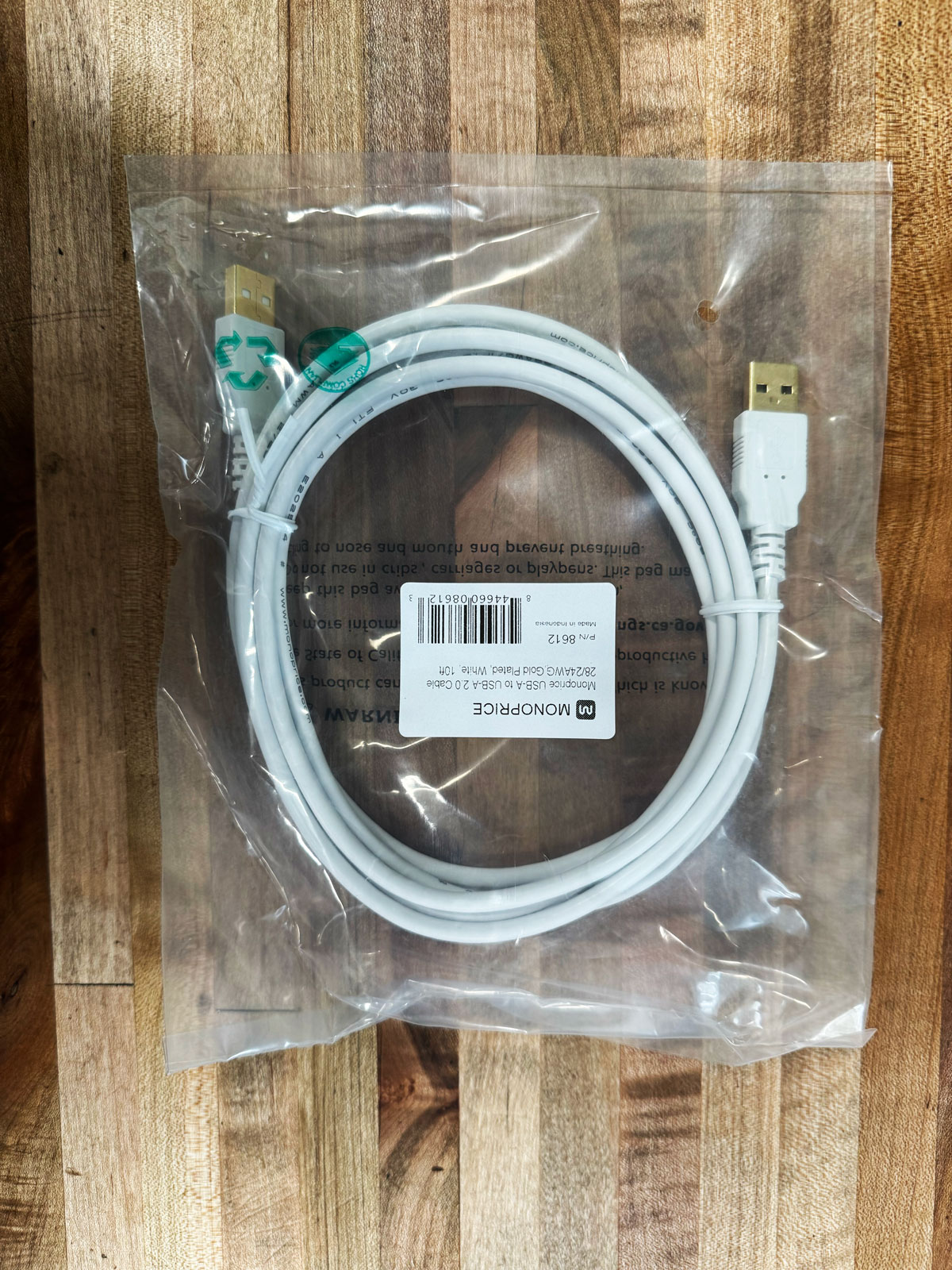

• 6 ft or 10 ft USB A-A cable (select 6 ft cable for BitLCD conversion)

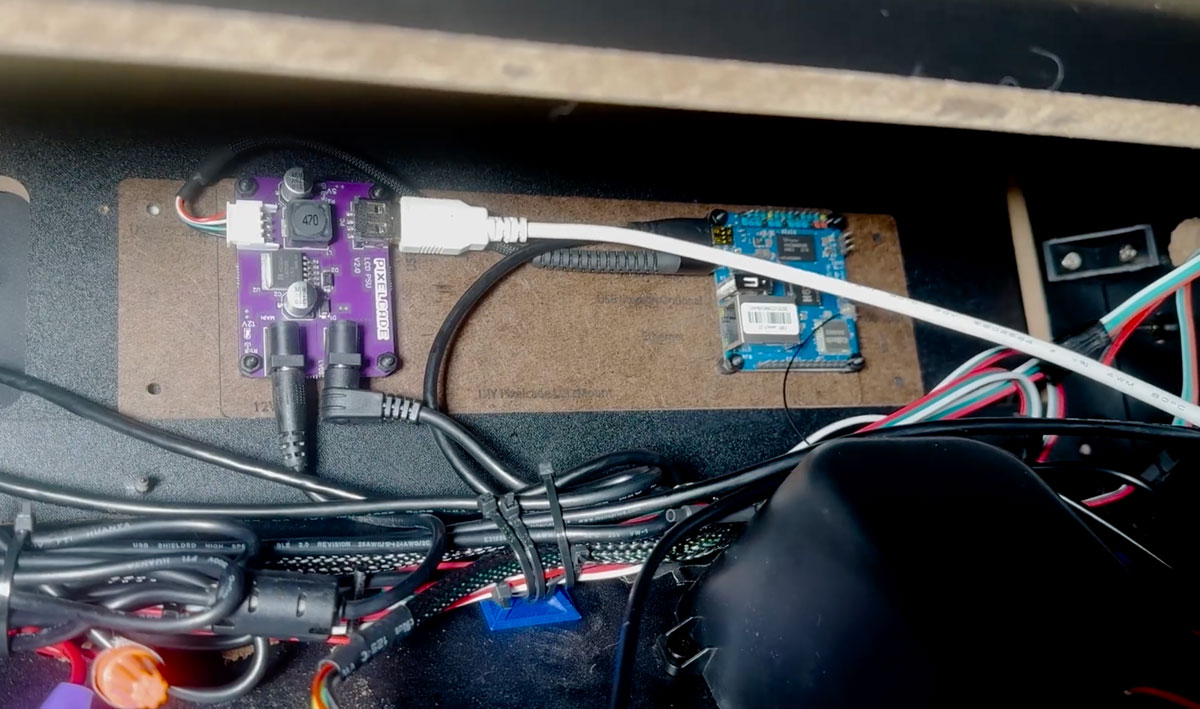

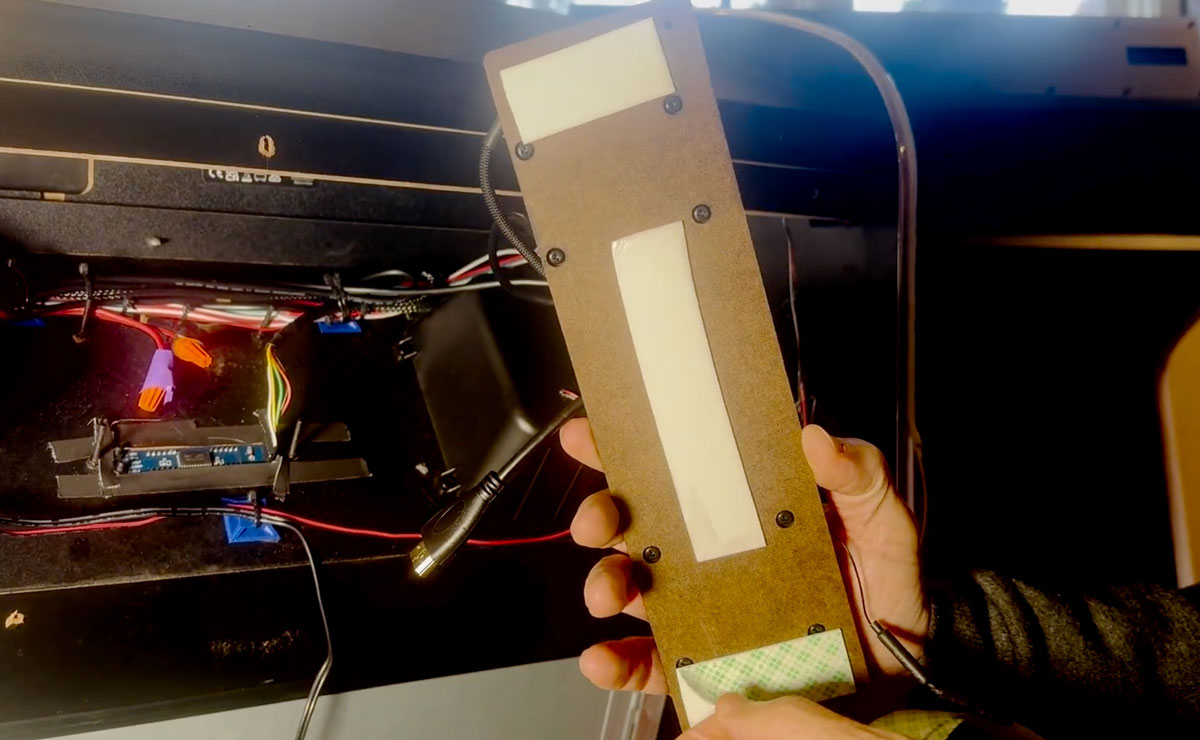

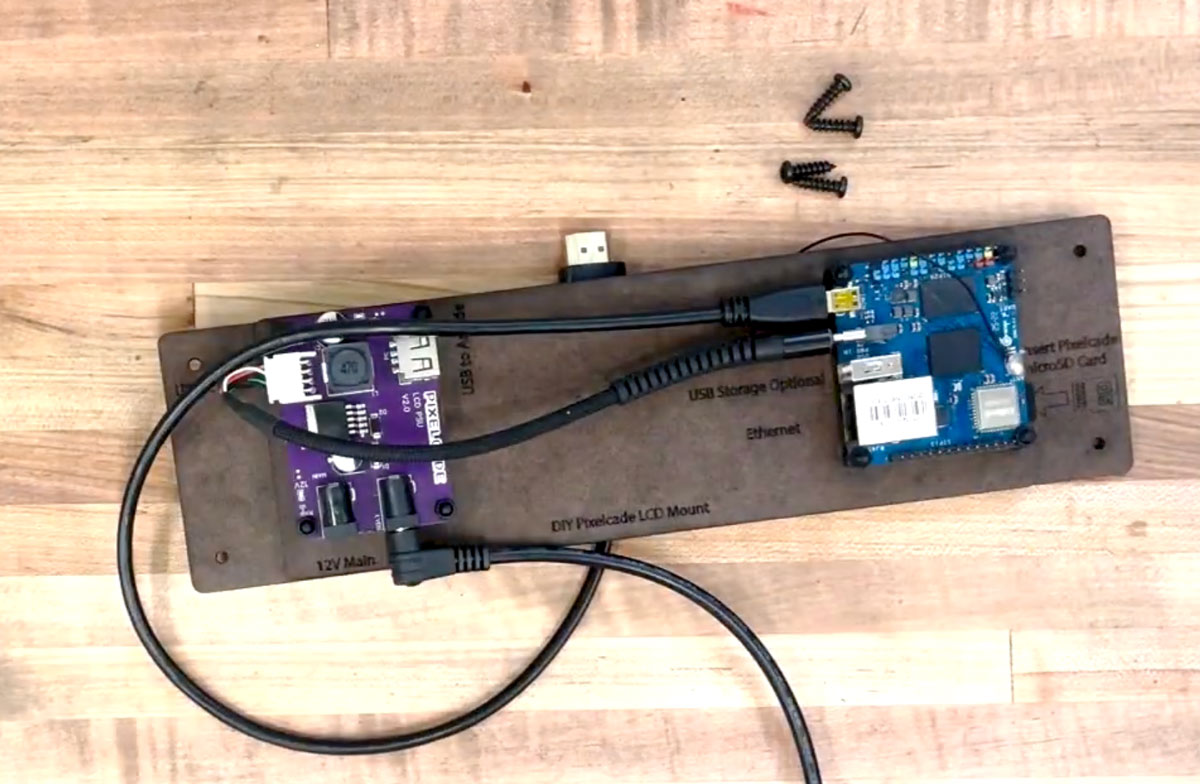

• Mounting board with hardware (8 hex nuts and 4 wood screws)

Optional

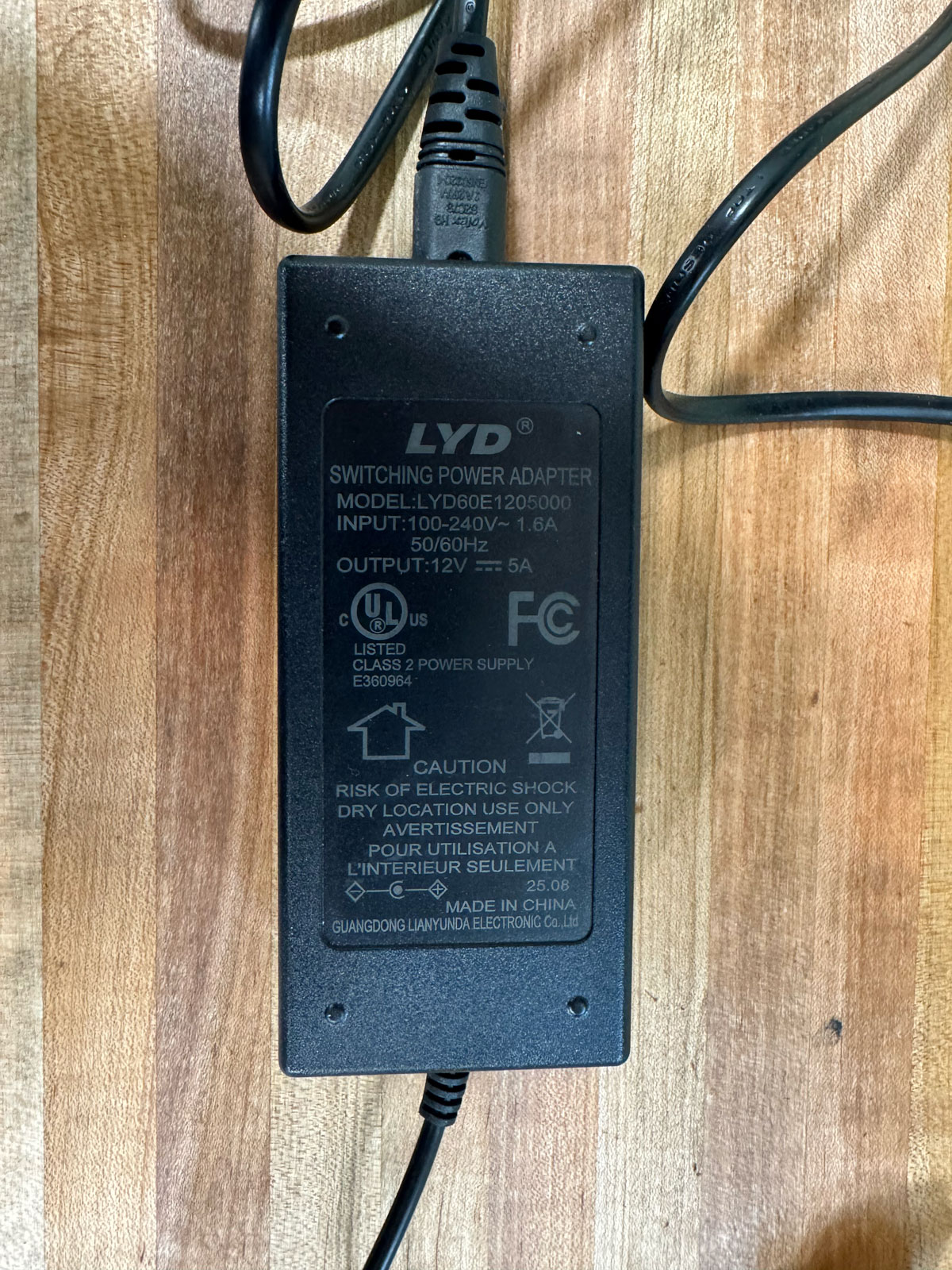

• 12V, 5A Power Brick or Pixelcade SATA Power Cable 12V
• Mounting Tape

Not Included / Purchase Separately

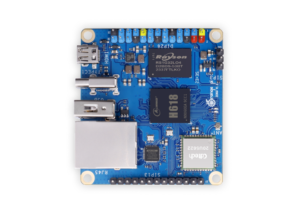

• Orange Pi Zero 3
• SanDisk 64 GB MicroSD Card
• LCD Bar Display (1920 x 360, 1280 x 390, or AtGames BitLCD)

If choosing the Pixelcade LED + Pulse option, a Pixelcade LED board will be included with matrix and pulse cables. The Pixelcade LED + Pulse board will need separate power so if you selected a power source, two of them will be included with this option.

The Pixelcade LCD software will be a digital download from Google Drive. Please add your gmail address in the order notes and then you’ll receive an email with the download link sometime after your order is placed.

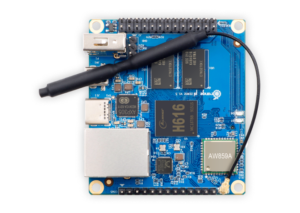

Please note that the Pixelcade LCD software DOES NOT run on a Raspberry Pi and only runs specifically on the Orange Pi Zero 2 or Orange Pi Zero 3 hardware and will NOT run on other Orange Pi boards.

Damage Policy
-We’ll ship replacement parts for any components damaged during shipping

Return Policy
-Return shipping is not included and a 15% restocking fee will be applied to cover money transfer fees and packaging
